New Vehicles » Yamaha » Grizzly 350 IRS Auto 4x4
Model Quick Search

$5,949.00

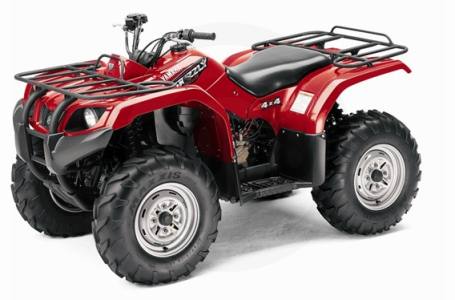

2008 Yamaha Grizzly 350 IRS Auto 4x4
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Engineered to perform. Say hello to the midsize independent-rear-suspended member of the Grizzle clan. You're looking at a heavy-duty ATV with everything you need to get wherever you need to go, at a great price.

    Key Features
    • This full-featured machine gets new, independent rear suspension for excellent terrainability and all-day comfort—a great value.
    • The power-packed full-featured Grizzly 350 Automatic 4x4 IRS carries a lot of big brother Grizzly advanced ATV technology in an affordable package.
    • Class-exclusive fully automatic Ultramatic® transmission is the most advanced drive system in ATVing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and class-exclusive front/rear-wheel downhill engine braking.
    • Class-exclusive On-Command® 4WD with Diff Lock means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.
    • Sealed rear wet brake delivers consistent stopping power in all conditions and is virtually maintenance-free.
    • Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.
    • Left-side–mounted F/N/R shift lever.
    • Wide, fully integrated floorboards keep feet dry and serrated footpegs provide extra grip in wet conditions.
    • Class-exclusive large-diameter ventilated hydraulic dual front disc brakes for tremendous stopping power.
    • Grizzly 450-style grab bar provides excellent durability and good looks too.
    Engine
    • Rugged and reliable 348cc air-/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
    • Semi-oval slide 33mm Mikuni carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all RPM.
    • Pushbutton electric starting is backed up by an auxiliary recoil starter.
    • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
    • Fully sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
    • Automatic cam chain tensioner reduces engine maintenance.
    Chassis/Suspension
    • Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
    • Fully independent rear suspension provides fantastic terrainability and a smooth ride.
    • High-tech sealed wet brake means consistent, long-lasting braking performance in all kinds of harsh environments.
    • On-Command with Diff Lock puts power to all four wheels for true 4WD.
    • 9.6 inches of ground clearance and high-impact plastic skid plate improve maneuverability and undercarriage protection.
    • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
    • Low seat height for enhanced handling.
    Additional Features
    • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
    • Front grab bar adds style and functionality.
    • Standard, center-mounted trailer hitch can hook up over 1,100 pounds of payload.
    • Large front and rear fenders with inner guards offer excellent mud/splash protection.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Plush, specially designed seat is widely contoured for incomparable rider comfort.
    • Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
    • Rear brake/taillight.
    • Maintenance-free 12-amp-hour battery provides reliable, cold-weather starting power.
    • Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.
    • Easy-access, from the elements.
    • Dual, bright, multi-reflector 30-watt Krypton bulb headlights with high and low beams.
    • Easy, handlebar-mounted choke lever.
    • Built in Newnan, GA, USA.
    Specifications
    • Type: 348cc, 4-stroke, air-/oil-cooled single; SOHC
    • Bore x Stroke: 83.0mm x 64.5mm
    • Compression Ratio: 9.2:1
    • Carburetion: Mikuni 33mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    • Engine Braking: All wheel
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 6.3-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Sealed wet brake
    • Tires/Front: AT25x8-12
    • Tires/Rear: AT25x10-12
    • L x W x H: 78.5 x 43.1 x 44.1 in
    • Seat Height: 32.7 in
    • Wheelbase: 48.6 in
    • Turning Radius: 134 in
    • Ground Clearance: 9.6 in
    • Fuel Capacity: 3.8 gal
    • Dry Weight: 578 lbs
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 1,102 lbs.
    • Instrumentation: Speedometer, odometer
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight

    Specifications

    Engine
    Engine Type 348 cc, 4-stroke, air-/oil-cooled single; SOHC
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Engine Cooling air-/oil-cooled
    Starting System Ignition: DC-CDI; Starting System: Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Travel 7.1 in.
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Dimensions/Capacities
    Dry Weight 578 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1,102 lbs
    Fuel Capacity 3.8 gal.
    Ground Clearance 9.6 in.
    Machine Dimensions (LxWxH) 78.5" x 43.1" x 44.1"
    Wheelbase 48.6 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    General
    Speedometer Standard
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Red, Realtree® AP HD™ Camouflage

    Compare Models

    		 Print








    Year 2008
    Manufacturer Yamaha
    Model Grizzly 350 IRS Auto 4x4
    Style Utility
    MSRP* $5,949.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.1 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 578 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1,102 lbs
    Fuel Capacity 3.8 gal.
    Ground Clearance 9.6 in.
    Machine Dimensions (LxWxH) 78.5" x 43.1" x 44.1"
    Wheelbase 48.6 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    Engine
    Engine Type 348 cc, 4-stroke, air-/oil-cooled single; SOHC
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Cylinders
    Engine Cooling air-/oil-cooled
    Fuel System
    Starting System Ignition: DC-CDI; Starting System: Electric w/auxiliary pull
    Alternator
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Red, Realtree® AP HD™ Camouflage
