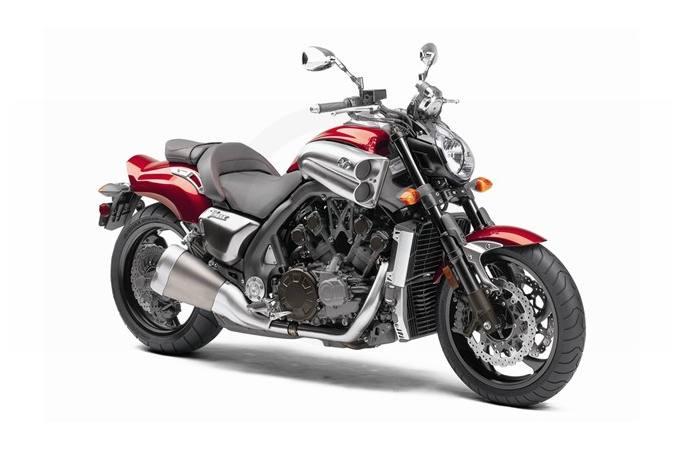

2010 Yamaha VMAX
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Specifications
    • Type: 1679cc liquid-cooled 65° V-4, DOHC, 4 valves/cylinder
    • Bore x Stroke: 90.0mm x 66.0mm
    • Compression Ratio: 11.3:1
    • Fuel Delivery: Fuel Injection with YCC-T and YCC-I
    • Ignition: TCI: Transistor Controlled Ignition
    • Transmission: 5-speed, multiplate slipper clutch
    • Final Drive: Shaft
    Chassis Specifications
    • Suspension/Front: 52mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound; 4.7 in travel
    • Suspension/Rear: Single shock w/remote reservoir and remote adjustable for preload, compression and rebound
    • Brakes/Front: Dual 320mm wave-type discs; radial mount 6-piston calipers, Brembo® radial pump master cylinder
    • Brakes/Rear: 298mm wave-type disc, single-piston caliper and Brembo® master cylinder
    • Tires/Front: Bridgestone® Radial 120/70-R18 59V
    • Tires/Rear: Bridgestone® Radial 200/50-R18 76V
    Dimensions
    • Length: 94.3 in
    • Width: 32.3 in
    • Height: 46.8 in
    • Seat Height: 30.5 in
    • Wheelbase: 66.9 in
    • Rake (Caster Angle): 31.0 in
    • Trail: 5.8 in
    • Fuel Capacity: 4.0 gal
    • Fuel Economy**: 27 mpg
    • Wet Weight: 683 lb / 685 lb (CA model)
    Key Features
    • The ultimate power cruiser delivers unmatched performance from its 65-degree, four-valves-percylinder, 1679cc V4—plenty of eye-opening, controllable acceleration from a compact engine that looks as powerful as it is.
    • Downdraft four-bore fuel injection with YCC-I intake technology and YCC-T fly-by-wire throttle provide awesome acceleration throughout the broad powerband.
    • Lightweight aluminum chassis puts the engine low and forward for mass centralization, resulting in a machine designed to handle curves as well as straightaways.
    • Borrowing liberally from advanced sportbike technology, VMAX features a slipper clutch, wave-style brake discs, master cylinders, ABS, and complete suspension adjustability front and rear.
    • Functionality and forward-thinking style uniquely combine with features like oxidized-titaniumcoated 52mm front fork tubes, magnesium engine side covers, fluorinated polyethylene fuel tank and the organic electroluminescence multifunction display.
    Engine Features
    • The thunderous 1679cc, 65-degree, liquid-cooled, fuel-injected four-valves-per-cylinder, DOHC engine pumps out astonishing power to reinvent the VMAX legend.
    • The sportbike-proven Yamaha Chip Controlled Intake (YCC-I) switches nearly instantaneously between 150mm and 54mm intake funnels as needed for a broad powerband that delivers optimum performance at any rpm.
    • Yamaha Chip Controlled Throttle (YCC-T), the fly-by-wire system, delivers optimum acceleration under all conditions.
    • Engine combines four-valve technology with a high 11.3:1 compression ratio, forged aluminum pistons and NGK® Iridium spark plugs with R1-type direct ignition coils to extract maximum horsepower from the fuel charge.
    • Cams are driven by a combined chain and gear system to precisely control valves while keeping cylinder heads remarkably compact for such a large displacement engine.
    • Hydraulically activated clutch includes racetrack-proven ramp-type slipper clutch system that makes braking from speed while downshifting smoother.
    • Five-speed transmission has superbly spaced gear ratios to take full advantage of the engine’s awesome power in straight-line acceleration or through the canyons.
    • Four-into-one-into-two-into-four exhaust system with EXUP® delivers a broad, seamless powerband with the right VMAX look.
    • Delivering this power cruiser’s muscle to the street means a beefy shaft drive just like its predecessor. Special shaft design includes two cross joints to accommodate the fat 200/50 R18 rear tire.
    • The high-performance engine is cooled by two radiators for efficiency and clean looks. Lubrication is via a simple, reliable wet sump system.
    • The iconic VMAX aluminum intake covers are hand buffed by craftsmen for superb quality and individuality.
    Chassis/Suspension Features
    • The chassis is light and compact, with a cast aluminum main frame, CF die-cast and extruded aluminum rear frame and cast aluminum swingarm. The result is superb rigidity balance for both hard acceleration off the line and corner carving.
    • Cartridge-damper-type front forks have substantial 52mm inner tubes with oxidized titanium coating. Forks have both compression and rebound damping adjustability plus spring preload.
    • Link-type Monocross® rear suspension has a piggyback reservoir and features compression and rebound clickers, plus remote preload adjustment.
    • VMAX uses Brembo®-designed master cylinders, the front with radial pump and reserve tank. Large 320mm wave-style dual front discs are matched to radial-mounted mono block 6-piston calipers. On the rear wheel, there’s a 298mm disc, also wave design, and single-piston caliper. These high-tech brakes also incorporate three-position ABS.
    • Tapered handlebar provides a muscular 1-1/8” diameter look at the triple clamp while using conventionally sized controls.
    • 18-inch radial tires, 120/70 R18 front and 200/50 R18 rear, are mounted on cast aluminum five-spoke wheels.
    • For mass centralization that contributes to the bike’s lean looks, the 4 gallon (15-liter) fuel tank is mounted under the seat, with the filler under the rider’s backrest. Tank is constructed of fluorinated polyethylene with superb permeability resistance.
    Additional Features
    • The Electronic Control Unit (ECU) uses three microprocessors to control fuel injection, ignition, YCC-T, YCC-I, meters and other electrical components.
    • The instrument panel includes an analog, step-motor driven tachometer and digital speedometer with LED indicator lights. Prominent LED shift timing indicator adds to the performance character of the new VMAX.
    • Organic electroluminescence multi-function display provides a more precise display vs. LCD and includes clock, fuel meter, trip meter with fuel reserve trip meter, transmission gear position, coolant temperature, stopwatch and more.
    • Distinctive key design reinforces the unique character of this new VMAX.
    • H4 60/55W headlight provides excellent visibility and distinctive style, while the trick-looking LED taillight is light, bright and highly efficient.
    • Rare earth magnet AC magneto puts out a robust 420W at 5000 rpm.
    Warranty
    • 2 Year (Limited Factory Warranty) with Priority Delivery Program

    Specifications

    Engine
    Engine Type 65° V-4, DOHC, 4 valves/cylinder
    Displacement 1679 cc
    Bore and Stroke 90.0 x 66.0 mm
    Cooling Liquid-Cooled
    Compression Ratio 11.3:1
    Fuel System Fuel Injection with YCC-T and YCC-I
    Ignition TCI: Transistor Controlled Ignition
    Chassis
    Front Suspension 52 mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound; 4.7 in travel
    Front Brakes Dual 320mm wave-type discs; radial mount 6-piston calipers, Brembo® radial pump master cylinder
    Front Tire Bridgestone® Radial 120/70-R18 59V
    Rear Suspension Single shock w/remote reservoir and remote adjustable for preload, compression and rebound
    Rear Brakes 298mm wave-type disc, single-piston caliper and Brembo® master cylinder
    Rear Tire Bridgestone® Radial 200/50-R18 76V
    Dimensions
    Dry Weight 683 lbs. (CA Model: 685 lbs.)
    Fuel Capacity 4.0 gal
    Wheelbase 66.9 in.
    MPG 27 mpg
    Seat Height 30.5 in.
    Trail 5.8 in.
    Rake 31.0 in.
    Transmission
    Transmission 5-speed, multiplate slipper clutch
    Final Drive Shaft
    General
    Speedometer Digital
    Tachometer Analog
    Colors Candy Red
    Warranty 2 Year (Limited Factory Warranty) with Priority Delivery Program

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model VMAX
    Style Sport Touring
    Chassis
    Front Suspension 52 mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound; 4.7 in travel
    Front Brakes Dual 320mm wave-type discs; radial mount 6-piston calipers, Brembo® radial pump master cylinder
    Front Tire Bridgestone® Radial 120/70-R18 59V
    Rear Suspension Single shock w/remote reservoir and remote adjustable for preload, compression and rebound
    Rear Brakes 298mm wave-type disc, single-piston caliper and Brembo® master cylinder
    Rear Tire Bridgestone® Radial 200/50-R18 76V
    Dimensions
    Dry Weight 683 lbs. (CA Model: 685 lbs.)
    Fuel Capacity 4.0 gal
    Wheelbase 66.9 in.
    MPG 27 mpg
    Seat Height 30.5 in.
    Trail 5.8 in.
    Rake 31.0 in.
    Engine
    Engine Type 65° V-4, DOHC, 4 valves/cylinder
    Displacement 1679 cc
    Bore and Stroke 90.0 x 66.0 mm
    Cooling Liquid-Cooled
    Compression Ratio 11.3:1
    Fuel System Fuel Injection with YCC-T and YCC-I
    Ignition TCI: Transistor Controlled Ignition
    General
    Speedometer Digital
    Tachometer Analog
    Odometer
    Colors Candy Red
    Warranty 2 Year (Limited Factory Warranty) with Priority Delivery Program
    Transmission
    Transmission 5-speed, multiplate slipper clutch
    Final Drive Shaft
