New Vehicles » Yamaha » Road Star S
Model Quick Search

$13,090.00

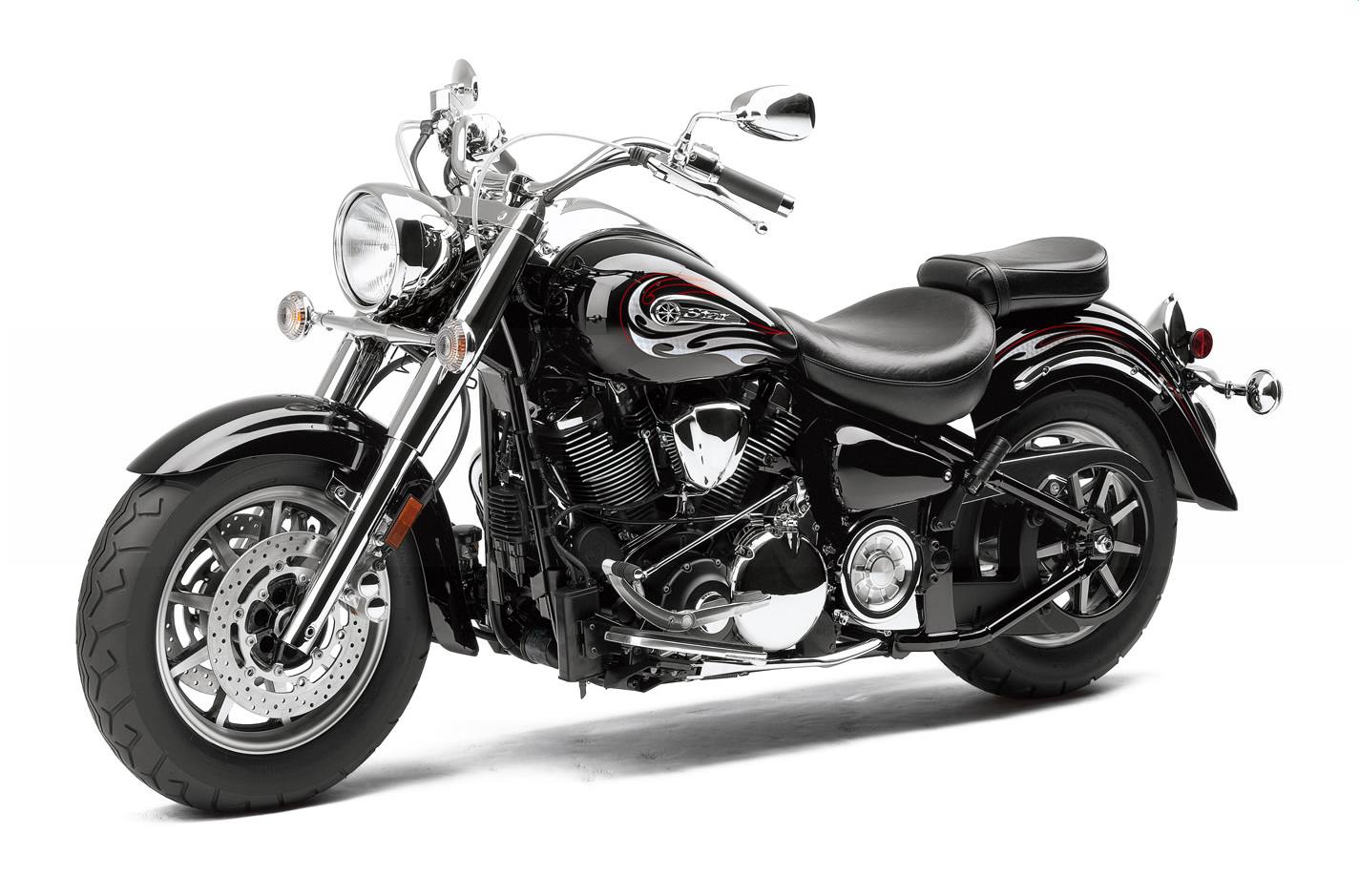

2010 Star Motorcycles Road Star S
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Though it's available in a metallic black lacquer - this Star is sure to light up the road with its radiant good looks and brilliant chrome.


Gleaming chrome, a retro seat and loads of torquey muscle will have you itching to ride. Swing a leg over, fire up the massive fuel injected V-twin engine, and then settle in for a nice long ride.

    Engine Specifications
    • Engine: Air-cooled, OHV, 8-valve, 48°, V-twin
    • Displacement: 1,670cc
    • Bore and Stroke: 97 x 113mm
    • Compression Ratio: 8.4:1
    • Maximum Torque: 13.9kg-m (100.5ft-lb) @ 2,500rpm
    • Fuel Delivery: 40mm throttle body FI
    • Estimated Fuel Consumption*: 15kpl / 43mpg (Imp.)
    • Ignition / Starting: Digital TCI / Electric
    • Transmission: Wide ratio 5-speed
    • Final Drive: Belt
    Chassis Specifications
    • Suspension (Front): 43mm fork
    • Suspension (Rear): Adjustable link Monocross
    • Brakes (Front): Dual 298mm discs
    • Brakes (Rear): 320mm disc
    • Tires (Front): 130/90-16
    • Tires (Rear): 150/80-16
    Dimensions
    • Length: 2,500mm (98.4")
    • Width: 980mm (38.6")
    • Height: 1,140mm (44.9")
    • Wheelbase: 1,688mm (66.5")
    • Seat Height: 710mm (28")
    • Fuel Capacity: 18 litres (3.4 imp. gal.)
    • Wet Weight: 337 kg (741.4 lb)
    • Colour(s): Metallic Black
    Engine Features
    • 1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque for unparalleled acceleration and cruising performance.
    • 4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output.
    • Hydraulic valve lifters driven by twin crankcase-mounted camshafts deliver exceptional performance and reduce maintenance needs.
    • Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity.
    • Large-diameter, forged pistons offer great durability and lighter weight for fast response.
    • Ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.
    • Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.
    • Electronic fuel injection with TPS. This system features a single 40mm throttle body with dual injectors (one for each cylinder). The throttle position sensor is linked to the ECU and supplies info about throttle opening so the ECU can adjust ignition timing for optimum engine performance at all rpms.
    • High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.
    • Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.
    • Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.
    • Dry sump lubrication system with handy spin-on oil filter, creates a lower centre of gravity by helping reduce overall engine height.
    • Large-flywheel crankshaft delivers superior, low-rpm torque and that incredible V-twin "pulse" feel.
    • 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.
    • Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.
    • 2-into-2 exhaust system features beefy, staggered, dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.
    • Air Induction System (A.I.S.) reduces exhaust emissions (CO + HC).
    • Lots of high quality chrome engine covers.
    Chassis/Suspension Features
    • Solid-mounted engine housed in a specially designed gusset-less, double-cradle frame features a stylish 32° rake.
    • Long 1,685mm (66.3") wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.
    • Spacious ergonomics provide ample legroom, which maximizes rider comfort.
    • 43mm front forks with large-diameter covers and 140mm (5.5") of wheel travel smooth out the ride.
    • Spring preload-adjustable, single-shock rear link suspension lowers centre of gravity for excellent handling and a plush ride. Rear wheel travel is 110mm (4.3").
    • Rear shock is horizontally mounted under the engine and tucked out of sight for that classic, hardtail look.
    • Dual 298mm front disc brakes feature R1-inspired, one-piece, 4-piston calipers with chrome "buttons" accenting the outer piston covers. The dual disc brake set-up eliminates the unsettling twisting effect of a single disc set-up found on many cruisers.
    • 320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.
    • Separate rider and passenger seats provide lots of support and comfort. Passenger seat can be easily removed.
    • Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.
    • Wide, swept-back, 1"-diameter, rubber-mounted handlebars are easy to reach and help to reduce vibration on the rider's hands.
    • Separate sub frame positioned under deeply valanced rear fender allows easy customization with numerous accessible mounting points.
    • Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.
    • Nine-spoke, cast aluminum front and rear wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Road Star S. Since these are mag wheels, they are fitted with bias ply, tubeless-type tires.
    • 18 litre fuel tank provides an exceptional cruising range. The FI electric fuel pump is located inside the tank. Fuel tank seam is hidden for that clean, custom look.
    • Wide, swept-back, 1"-diameter, rubber-mounted handlebars are easy to reach and help to reduce vibration on the rider's hands.
    • Beautiful braided steel-look throttle and clutch cables enhance that the Road Star's stylish custom look and image.
    • Tank-mounted speedometer features an extremely stylish design with raised 3D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and a fuel gauge plus a range of indicator lights.
    • Diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.
    • Stylish turn signals with custom looking clear lenses are self-canceling
    • Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light. It is small details like this that separate the Star series of cruisers from the rest of the crowd.
    Additional Features
    • Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
    • Extra wide chromed front brake and clutch levers provide a quality feel.
    • 3-dimensional, fuel tank-mounted Road Star logo
    • Seat and steering locks are integrated into the main ignition switch for extra convenience.
    • Handy, dual under seat helmet holders
    • Powerful, 12V 60/55-watt, halogen headlight maximizes nighttime visibility.
    • Low-maintenance, sealed battery ensures fuss-free, dependable starting.
    • In-tank electric fuel pump
    Road Star "S" Special Features
    • Beautifully chromed, 43mm front fork assembly, upper triple clamp, handlebar holder, switch gear, master cylinder and levers
    • Beautiful Midnight Star logo in speedometer face
    • Blacked-out engine with polished cooling fin edges
    • High quality metallic black lacquer paint scheme
    • Factory-installed passing lamp relay speeds the installation of the accessory passing lamp kit available through Yamaha Genuine Parts and Accessories.

    Specifications

    Engine
    Engine Type OHV, 8-valve, 48°, V-twin
    Displacement 1,670 cc
    Bore and Stroke 97 x 113 mm
    Cooling Air-cooled
    Compression Ratio 8.4:1
    Fuel System 40 mm throttle body FI
    Ignition Digital TCI / Electric
    Chassis
    Front Suspension 43 mm fork
    Front Brakes Dual 298 mm discs
    Front Tire 130/90-16
    Rear Suspension Adjustable link Monocross
    Rear Brakes 320 mm disc
    Rear Tire 150/80-16
    Dimensions
    Fuel Capacity 18 litres (3.4 gal)
    Wheelbase 1,688 mm (66.5 in.)
    MPG 15 kpl (43 mpg)
    Seat Height 710 mm (28 in.)
    Transmission
    Transmission Wide ratio 5-speed
    Final Drive Belt
    General
    Colors Metallic Black

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model Road Star S
    Style Cruiser
    MSRP* $13,090.00
    Chassis
    Front Suspension 43 mm fork
    Front Brakes Dual 298 mm discs
    Front Tire 130/90-16
    Rear Suspension Adjustable link Monocross
    Rear Brakes 320 mm disc
    Rear Tire 150/80-16
    Dimensions
    Dry Weight
    Fuel Capacity 18 litres (3.4 gal)
    Wheelbase 1,688 mm (66.5 in.)
    MPG 15 kpl (43 mpg)
    Seat Height 710 mm (28 in.)
    Trail
    Rake
    Engine
    Engine Type OHV, 8-valve, 48°, V-twin
    Displacement 1,670 cc
    Bore and Stroke 97 x 113 mm
    Cooling Air-cooled
    Compression Ratio 8.4:1
    Fuel System 40 mm throttle body FI
    Ignition Digital TCI / Electric
    General
    Speedometer
    Tachometer
    Odometer
    Colors Metallic Black
    Warranty
    Transmission
    Transmission Wide ratio 5-speed
    Final Drive Belt
